Software & Feature Highlights

 Product Configuration Overview
o Qualcomm octa-core QCM6125 (snapdragon 665) processor
o Ram : 8 GB Rom : 128 GB
o Custom OS system based on Android 13
o Supports 4G full-network communication, compatible with 2G/3G networks
o Built-in dual-band WiFi (2.4G/5G)
 2.4G supports IEEE 802.11 b/g/n/ac
 5G supports 20/40/80MHz VHT
 WiFi hotspot sharing supported
o Supports 1080P 30fps video encoding, and up to 4K 30fps video decoding (H.264)
o Integrated SI47925 high-performance DSP + radio combo chip
o Standard with DTS surround sound algorithm, 32-band EQ, and “sweet spot” sound tuning
o Equipped with original ST 7850 amplifier for improved audio quality
o Supports optical and coaxial output, and RCA 5.1 channel output
o Built-in HDMI OUT output supported
o Supports 4-channel 1080P 360°panoramic view system
o Supports 1080P AHD reverse camera input
o Supports AUX audio/video input (1080P AHD & CVBS formats)
o Supports dual Bluetooth modes:
 BT1 for OBD, BLE mouse/keyboard, ambient lighting, Bluetooth speakers, etc.
 BT2 for mobile phone connection
o Equipped with AI voice control for human-machine interaction
o Simultaneously supports GPS + GLONASS + BeiDou, with up to 50 satellites for precise positioning
o Supports dual USB ports, compatible with OEM USB interface
o Supports Apple CarPlay and Huawei HiCar mobile phone connectivity

2.1 Hardware Specifications
Data Types Specifitions Details / Notes
Screen

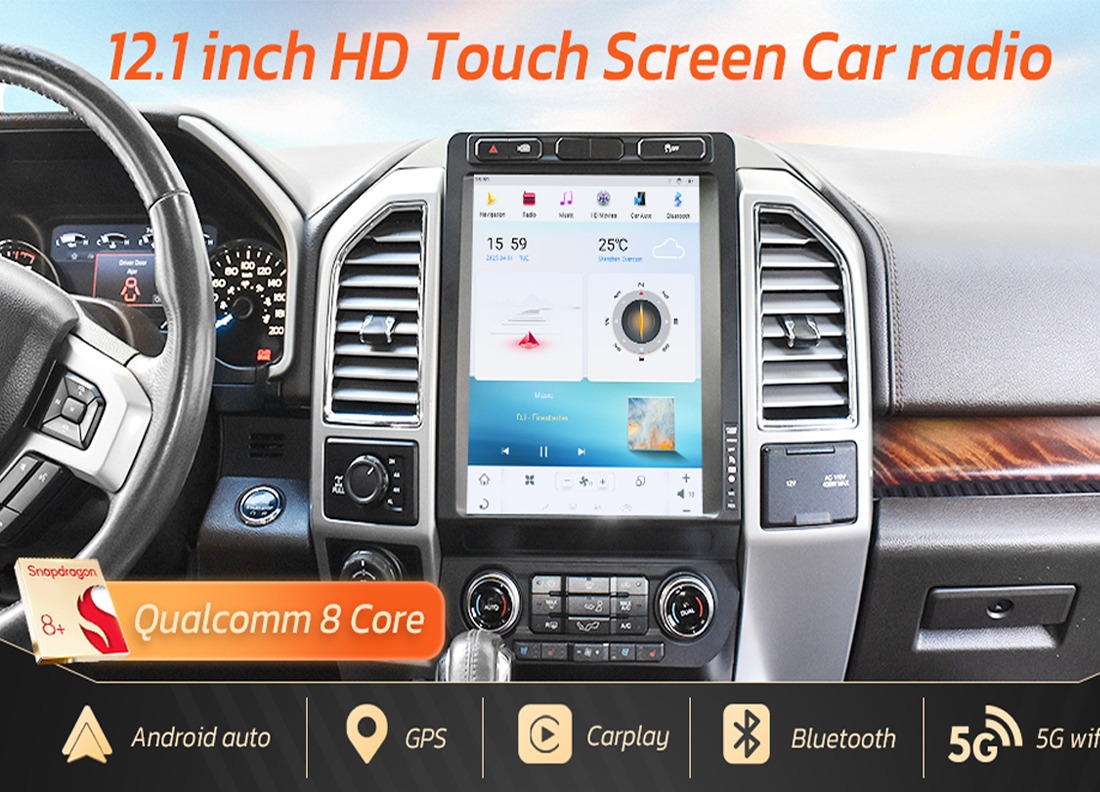

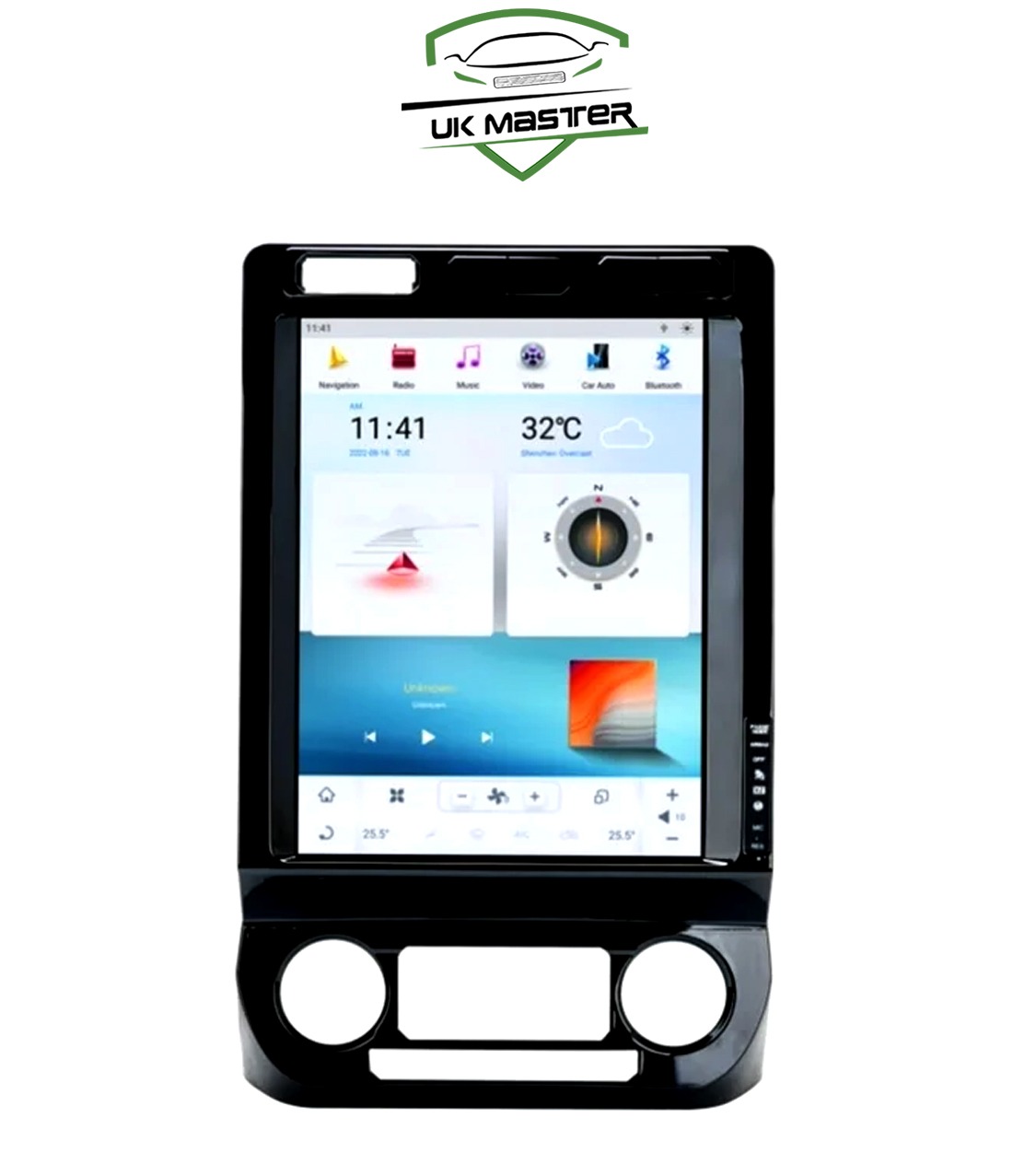

Size 12.1 Inchs
Type IPS 85/85/85/85（up/down/left/right）
Resolution 1920(RGB)×1080 WUXGA, 141PPI
Brightness 500cd/m²
Processor & Storage
CPU Qualcomm’s® QCM6125 Quad-core ARM Cortex™-A73,2.0GHz
Quad-core ARM Cortex™- A53，1.8GHz
GPU Adreno™ 610 GPU
RAM 8GB
EMMC/ROM 128GB
Operating System
Android Version Android 13
Voice Command
Multilingual Voice Assistant Support
Phone Connection
CarPlay/Hicar Support
Android AUTO Support
Connectivity
WiFi 802.11 a/b/g/n/ac, 2.4G+5G
802.11 a/b/g/n/ac, 2.4G+5G
Bluetooth
Dual Module Bluetooth
BT5.0+BT4.1
Internet : 4G Band
LTE-FDD ：B1/3/5/7/8/20/28
TE-TDD ：B38/40/41
WCDMA ：B1/B2/5/8
GSM/EDGE：850/900/1800/1900MHz
Position System
GPS Built in BeiDou+GPS+GLONASS
Gyroscope Built-in 6-axis gyroscope
Audio Input/Output
DSP Chip SI47925 with 32 band EQ
Built-in DTS surrounding sound algorithm
Amplifier Chip ST 7850
Audio Output Speaker*4 / RCA L&R *2 / Subwoofer *1
Coaxial*1 / SPDIF*1
Microphone Default internal Mic ，can choose external Mic Wiring shares the same channel
Video Input/Output
Reversing Input AHD 720、AHD 1080 、CVBS
AUX Input AHD 720、AHD 1080 、CVBS
Video Output HDMI 2K High Definition Output
360 panorama view 4 ways 1080P 2D/3D 360 Panorama
External Interface
USB Port 2 Ways
AUX Input 2 Ways Audio Input
Power Consumption
Working Voltage +9V — +16.2V
Standby Current 7mA
Environment Reliability
Working Temperature -30℃ – +70℃
